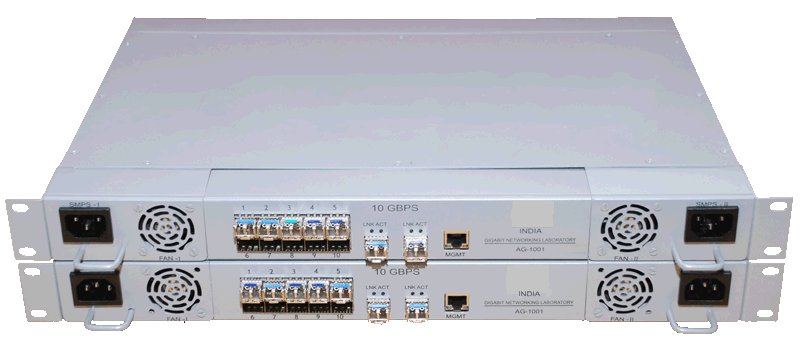

O 1000

The solution has been built taking into consideration the requirements of networking platforms :

  • WDM fabric support: At layer 1, it support WDM – hence facilitates excellent fiber utilization.
  • OTN support: supporting OTN facilitates up to 1000km reach without regeneration of the optical signal – making this technology connect the metropolitan cities in India using external transponder.
  • Carrier Ethernet support: 12 interfaces, each of which support between 1 Gbps and 10 Gbps traffic can support Carrier Ethernet services.
  • Each interface supports a multitude of services with each service supporting granularity from 1Mbps to 10 Gbps in increments of 10Mbps.
  • Routing support: a proprietary routing mechanism facilitates routing in a domain that supports our solution.



Specifications :-

Port configuration Switching fabric 60 Gbps
1 Gbps 10 Ports
10 Gbps 2 Ports
Physical specification Height 44.4 mm (1-U)
Width 436 mm
Depth 305 mm
Electrical specification
Thermal specification Min temperature 0 °C
Max temperature 50 °C
